HEBEI XINYU WELDING CO., LTD.

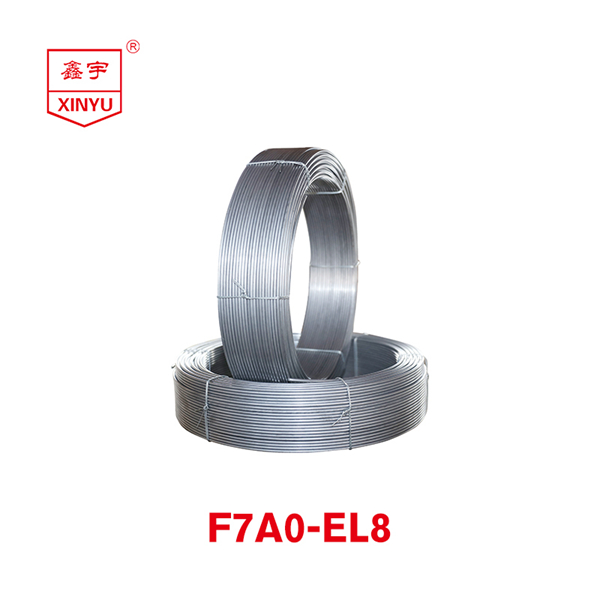

AWS F7A0-EL8
  • AWS F7A0-EL8
AWS F7A0-EL8

AWS F7A0-EL8

Welding of low carbon steel, 490MPa grade high strength steel

Specification:AWSF7A0-EL8
GBF5A2-H08A
Product Description

AWS F7A0-EL8 - Characteristics

( 1 ) Welding bead appearance is smooth and beautiful, welding slag stripping is good.

( 2 ) The applicability is good for rust, excellent hole

( 3 ) Unipolar, bipolar, AC DC power supply are common.

( 4 ) Suitable for the butt joint and fillet welding of general structural parts.


AWS F7A0-EL8 - One chemical composition of the weld metal sample (wt%)

CSiMnPS
0.0600.351.180.0160.010


AWS F7A0-EL8 - One mechanical properties of the weld metal sample

Tensile Strength
    MPa
Yield Strength
   MPa
Elongation
   %
Impact Energy Value
J
55048029063



-2037


AWS F7A0-EL8 Submerged Arc Welding Wire - Manufacturer

Hebei XINYU Welding Co., Ltd, mainly produces high-strength steel welding wire, Non-copper-coated solid wire,  submerged arc & stainless steel welding wire. Our products are widely applied to the welding of low-alloy high tensile large & key steel structures in coal machinery, construction machinery, petrochemical machinery, pressure vessels or tanks, oil & gas pipelines, military industry, shipbuilding, bridge, and high-rise buildings, etc. At the same time, we are the only enterprise in the domestic which produces welding wire as well as welding wire equipment.


Our Welding wires and welding wire equipment are exported to the USA, Italy, Brazil, Russia, and India, etc. Welcome you to our factory any time. Please leave contact information, our professional staff will contact you the first time!
